Color display Handheld BC401 High quality automated urine analyzer urine machine
Introduction

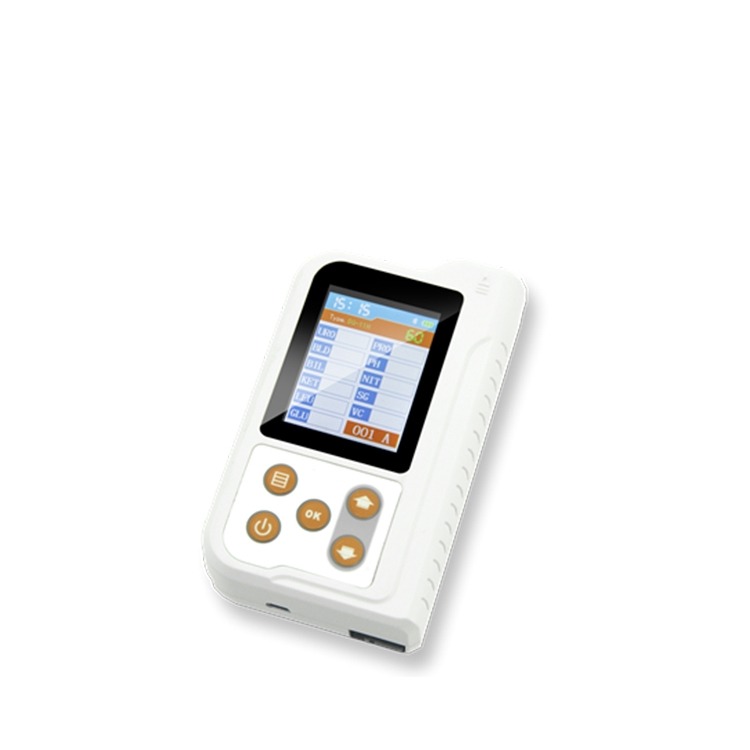

BC401 Urine Analyzer is a high-precision, intellectual instrument which is researched and developed basing on modern optics, electronics, computer science and other advanced technologies for clinical inspection of urine. GLU, BIL, SG, KET, BLD, PRO, URO, NIT, LEU, VC and PH in urine can be tested by using it with special test strips. And it is applicable for use in hospital, community health service, clinic, epidemic station and family, etc.
1. LCD display: man-machine conversation window.
2. Micro USB socket: AC adapter power supply socket, interface of data transmission.
3. Keyboard: 5-key touch control keyboard, operate the analyzer with the buttons.
4. Test paper tray: place the strip to be tested on it.
Main Feat ures
1.High-luminance and white LED, features in long life and good stability.
2.Display abundant contents by the 2.4'' LCD, optional languages: Chinese and English.
3.User-friendly interface.
4.Optional units: international unit, conventional unit and symbol system.
5.Monitoring the whole test process, auto-character and audible prompt.
6.Be compatible with 8, 10 and 11-parameter test strip.
Test item | Glucose(GLU),Bilirubin(BIL),Specific gravity (SG),PH,Ketone body(KET), Occult blood(BLD),Protein(PRO),Urobilinogen(URO),Nitrite(NIT),Leukocytes (LEU),Ascorbic acid (VC) |
Test mode | Single-step test |
Language | Chinese and English |
Display | LCD, resolution:320*240 |
Principle | RGB tricolor test theory |
Communication interface | Micro USB interface wireless communication |
Repeatability | CV≤1% |
Stability | CV≤1% |
Record mode | LCD display, FlashROM data storage |
Relative humidity | ≤80% |
Power supply | Built-in rechargeable lithium battery 3.7V, 1900mAh Host computer: DC 5V, 1A Adapter: AC 100V~240V, 50/60Hz |
Test range | Refer to Grads Table in appendix |
Operating environment | Temperature: 10℃~30℃ Relative humidity: ≤80% Atmospheric pressure: 76kPa~106kPa Away from the strong electric field (magnetic field), avoid direct sunlight |
Dimension | 126mm(L)*73.5mm(W)*30mm(H) |
